Pemco Products

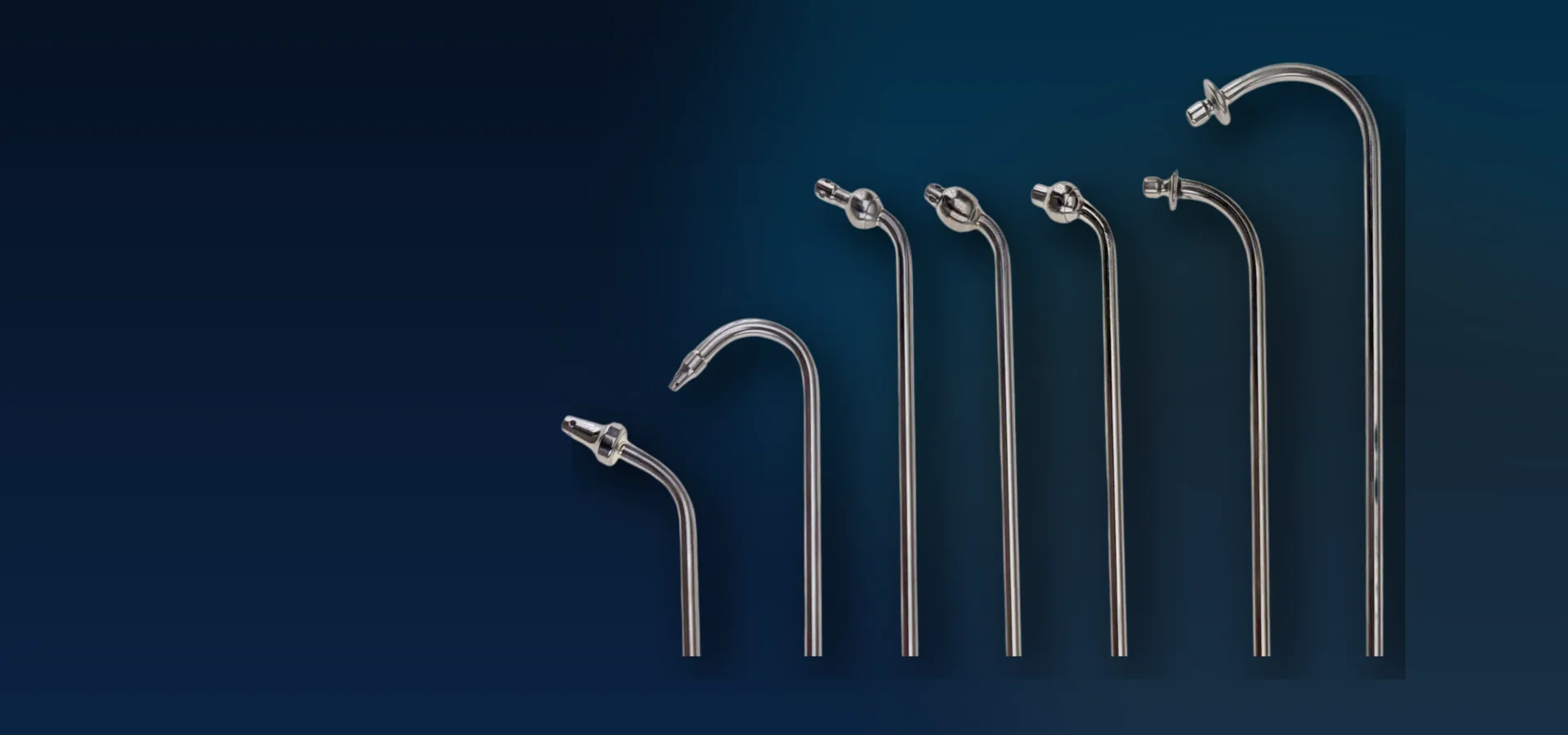

Ostial Perfusion Cannula
Reusable perfusion cannula organized by tip style, handle configuration, diameter, and bend angle.
Perfusion Cannula

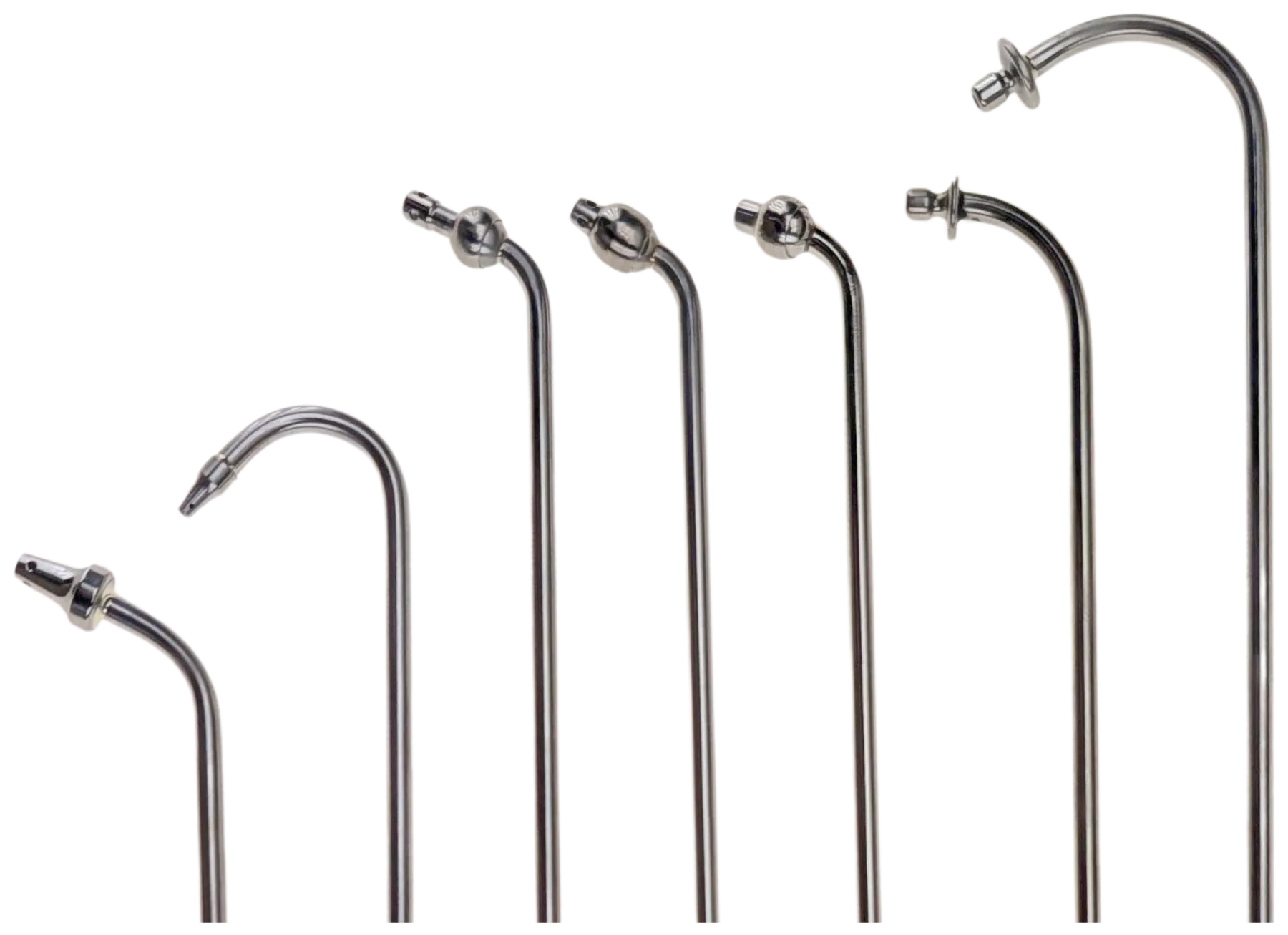

Choose a Cannula Tip Style
Pemco Medical cannula and tips are precision crafted from surgical-grade stainless steel. Separate tip-style pages make it easier to review promoted configurations before consulting detailed part-number references.

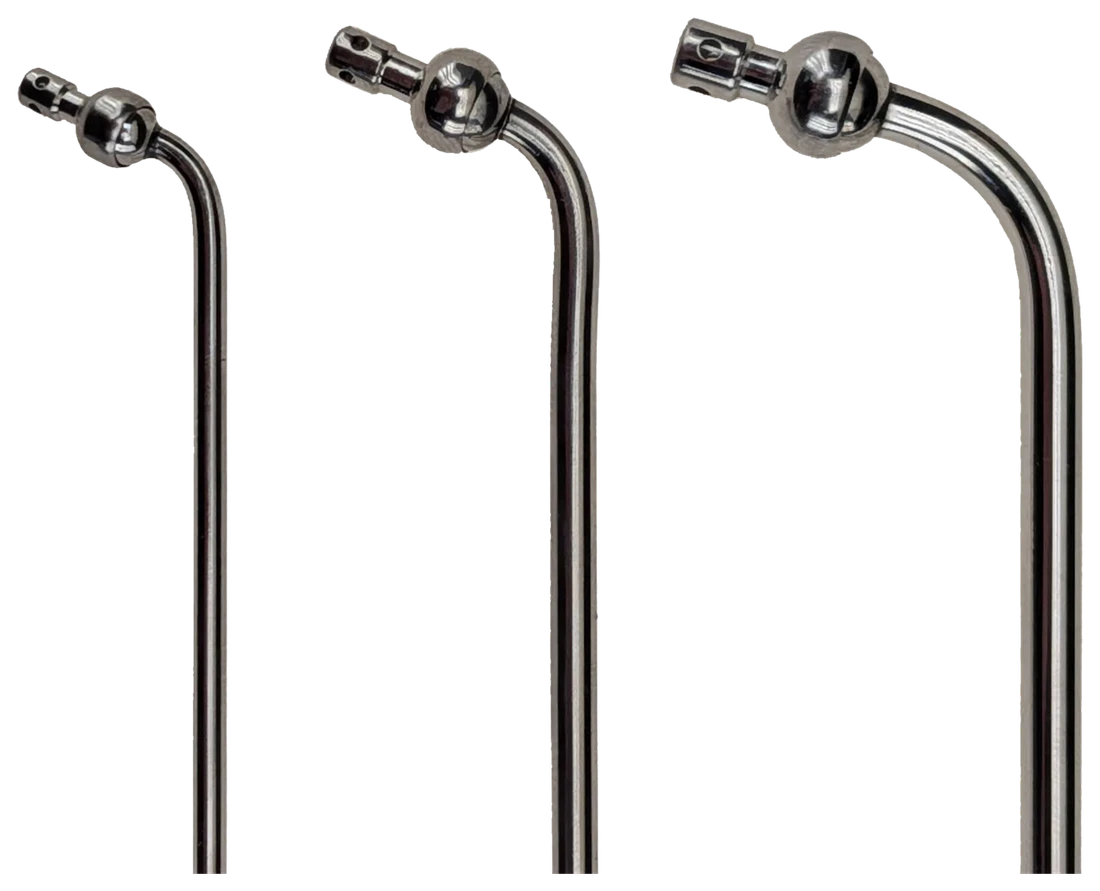

Tip Style #2
Swivel tip with 75° stem bend.

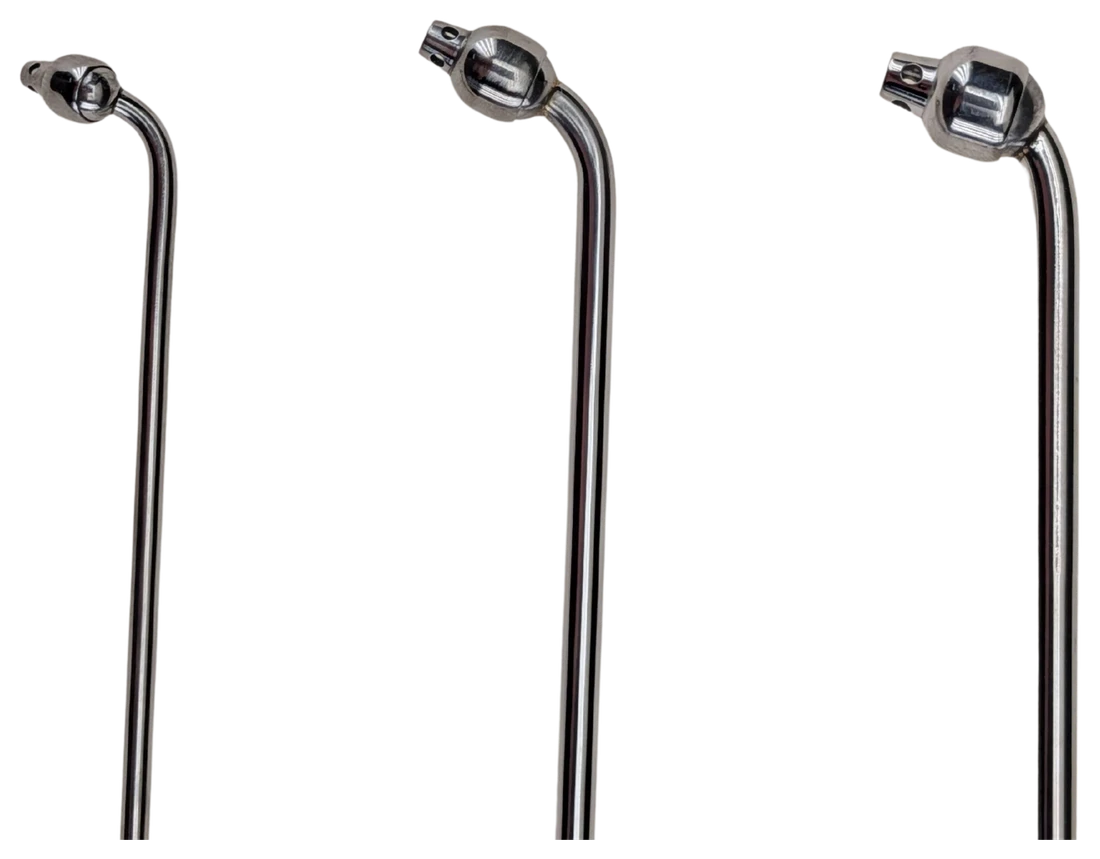

Tip Style #5
Swivel tip with 75° stem bend.

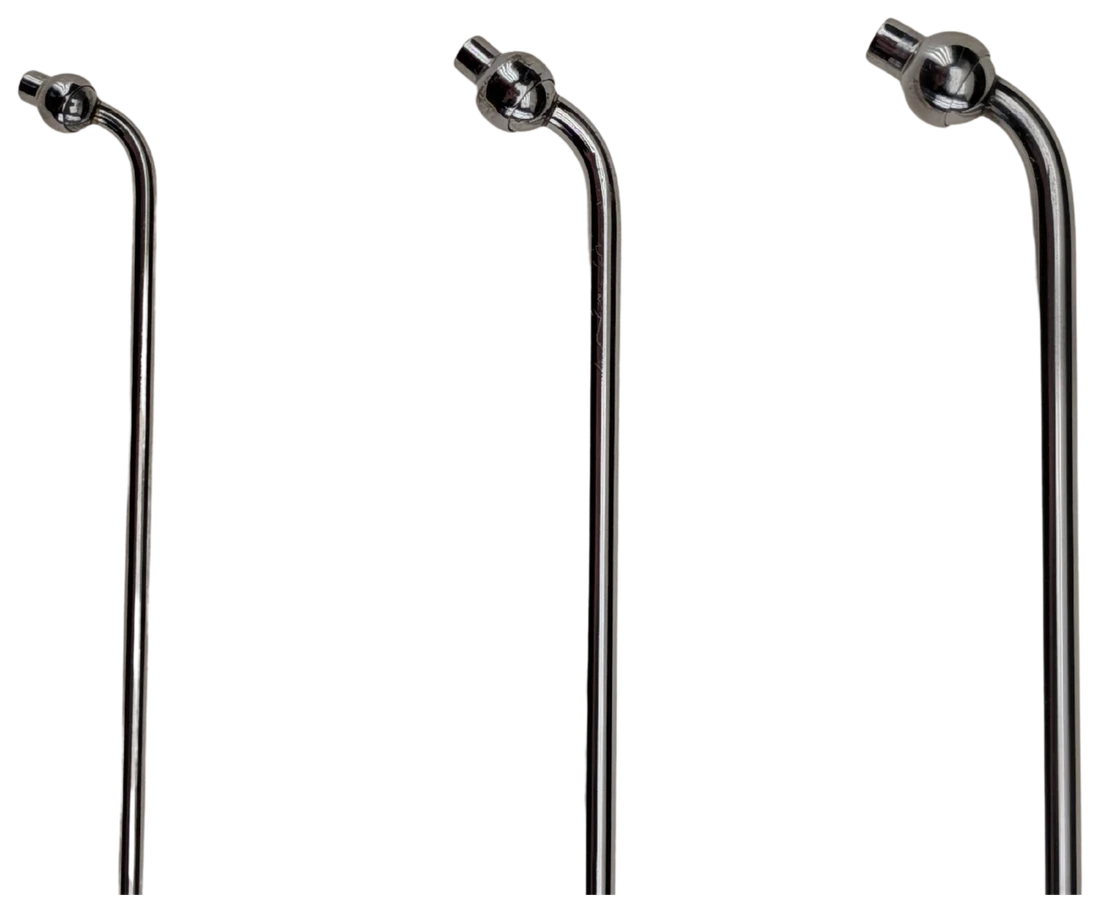

Tip Style #7
Swivel tip with 75° stem bend.

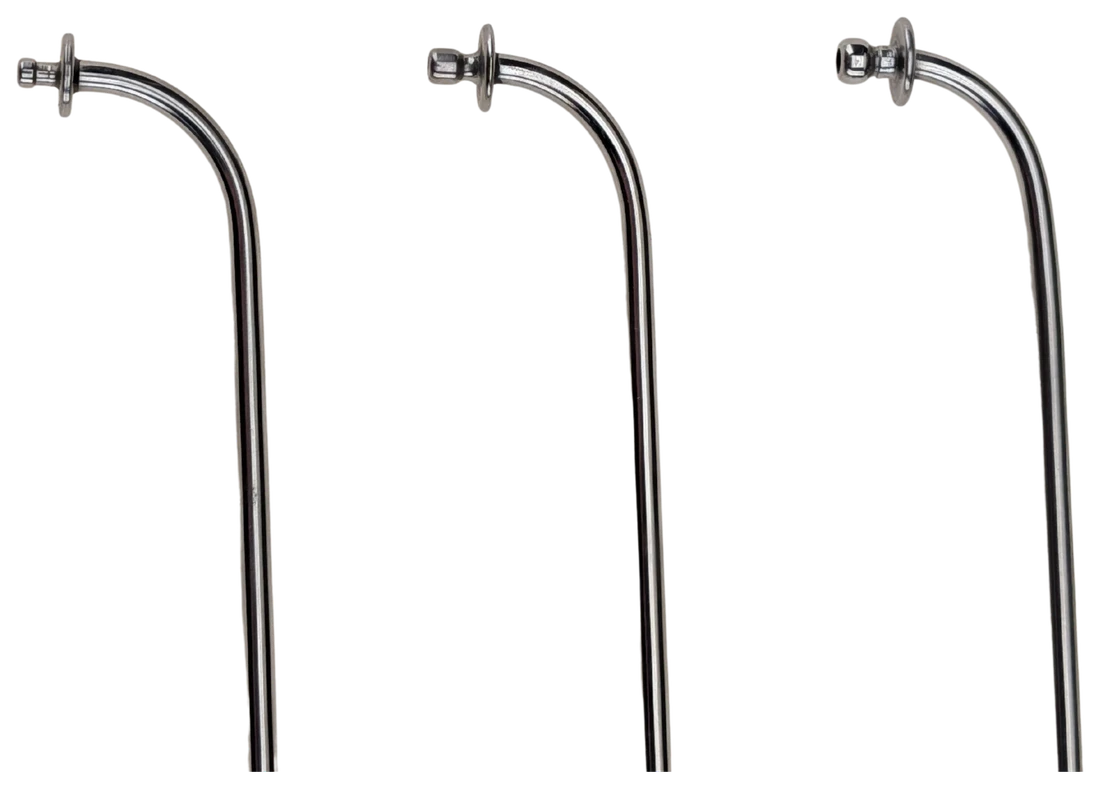

Tip Style #8
Fixed tip with 90° and 120° stem bend options.

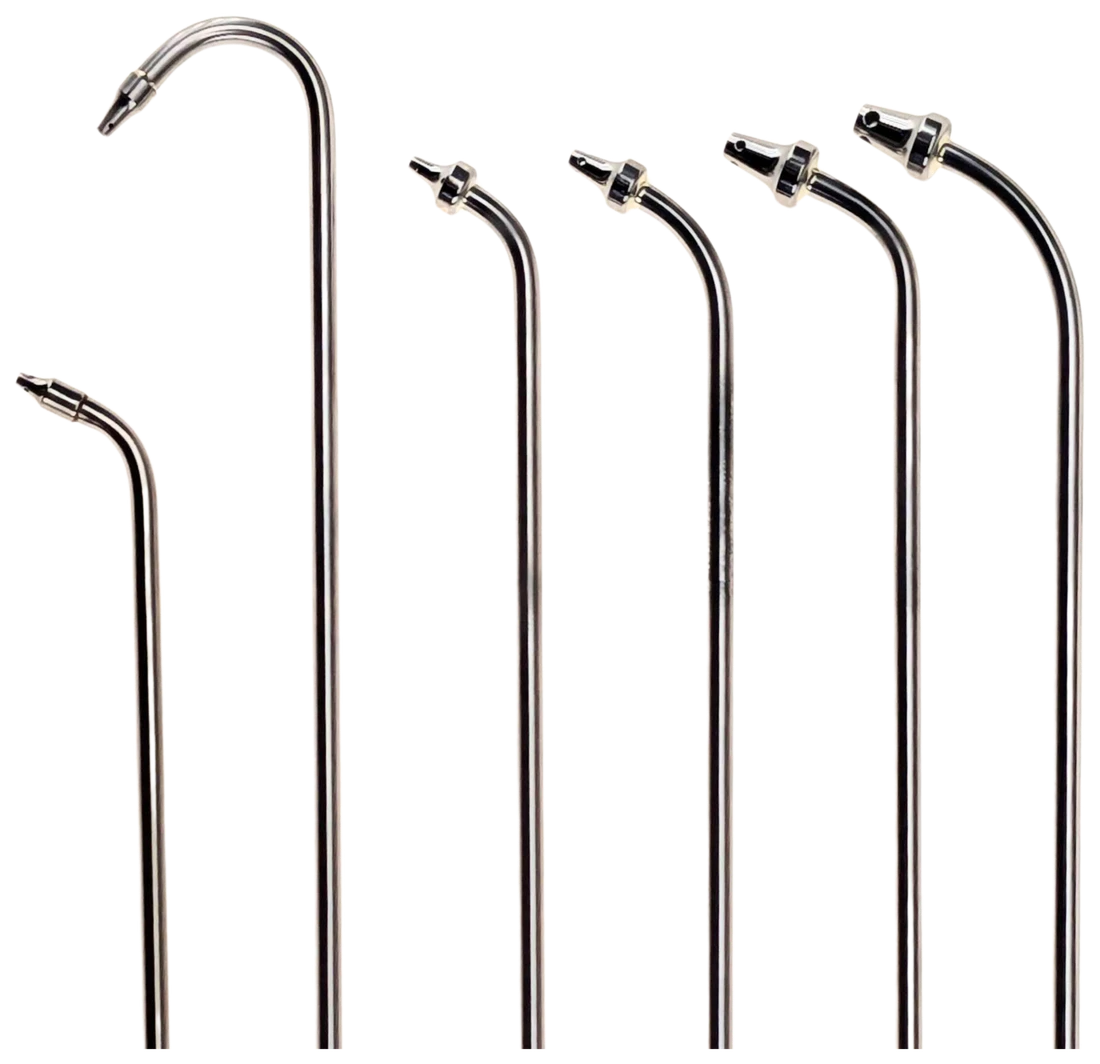

Tip Style #10
Fixed tip with 65° and 145° bend options.
Instructions for Use
Ostial Perfusion Cannula IFU
Download the current Instructions for Use for Pemco Medical reusable perfusion cannula products.
Download Cannula IFU
Reusable Perfusion Cannula Products
IFU information for Pemco Ostial Perfusion Cannulas.
Part Number Reference
Promoted Ostial Perfusion Cannula Part Numbers
Detailed part-number references are placed at the bottom of the page for customers who need exact product identification.
View All Promoted Cannula Part Numbers
Part numbers are provided for product identification and search reference.
| Part # | Description | Notes |
|---|---|---|
| 1580-A-02-2MM-75 | A Large Handle, #2 Swivel Tip, 2MM | Style #2 swivel tip, 75° stem bend. |
| 1580-A-02-3MM-75 | A Large Handle, #2 Swivel Tip, 3MM | Style #2 swivel tip, 75° stem bend. |
| 1580-A-02-4MM-75 | A Large Handle, #2 Swivel Tip, 4MM | Style #2 swivel tip, 75° stem bend. |
| 1580-A-02-5MM-75 | A Large Handle, #2 Swivel Tip, 5MM | Style #2 swivel tip, 75° stem bend. |
| 1580-A-05-2MM-75 | A Large Handle, #5 Swivel Tip, 2MM | Style #5 swivel tip, 75° stem bend. |
| 1580-A-05-3MM-75 | A Large Handle, #5 Swivel Tip, 3MM | Style #5 swivel tip, 75° stem bend. |
| 1580-A-05-4MM-75 | A Large Handle, #5 Swivel Tip, 4MM | Style #5 swivel tip, 75° stem bend. |
| 1580-A-05-5MM-75 | A Large Handle, #5 Swivel Tip, 5MM | Style #5 swivel tip, 75° stem bend. |
| 1580-A-07-2MM-75 | A Large Handle, #7 Swivel Tip, 2MM | Style #7 swivel tip, 75° stem bend. |
| 1580-A-07-3MM-75 | A Large Handle, #7 Swivel Tip, 3MM | Style #7 swivel tip, 75° stem bend. |
| 1580-A-07-4MM-75 | A Large Handle, #7 Swivel Tip, 4MM | Style #7 swivel tip, 75° stem bend. |
| 1580-A-07-5MM-75 | A Large Handle, #7 Swivel Tip, 5MM | Style #7 swivel tip, 75° stem bend. |
| 1580-A-08-3MM-90 | A Large Handle, #8 Fixed Tip, 3MM, 90° | Style #8 fixed tip, 90° stem bend. |
| 1580-A-08-4MM-90 | A Large Handle, #8 Fixed Tip, 4MM, 90° | Style #8 fixed tip, 90° stem bend. |
| 1580-A-08-5MM-90 | A Large Handle, #8 Fixed Tip, 5MM, 90° | Style #8 fixed tip, 90° stem bend. |
| 1580-A-08-6MM-90 | A Large Handle, #8 Fixed Tip, 6MM, 90° | Style #8 fixed tip, 90° stem bend. |
| 1580-A-08-3MM-120 | A Large Handle, #8 Fixed Tip, 3MM, 120° | Style #8 fixed tip, 120° stem bend. |
| 1580-A-08-4MM-120 | A Large Handle, #8 Fixed Tip, 4MM, 120° | Style #8 fixed tip, 120° stem bend. |
| 1580-A-08-5MM-120 | A Large Handle, #8 Fixed Tip, 5MM, 120° | Style #8 fixed tip, 120° stem bend. |
| 1580-A-08-6MM-120 | A Large Handle, #8 Fixed Tip, 6MM, 120° | Style #8 fixed tip, 120° stem bend. |
| 1580-P-10-1MM-65 | P Small Handle, #10 Fixed Tip, 1MM, 65° | Style #10 fixed tip, 65° bend. |
| 1580-P-10-2MM-65 | P Small Handle, #10 Fixed Tip, 2MM, 65° | Style #10 fixed tip, 65° bend. |
| 1580-P-10-3MM-65 | P Small Handle, #10 Fixed Tip, 3MM, 65° | Style #10 fixed tip, 65° bend. |
| 1580-P-10-4MM-65 | P Small Handle, #10 Fixed Tip, 4MM, 65° | Style #10 fixed tip, 65° bend. |
| 1580-P-10-5MM-65 | P Small Handle, #10 Fixed Tip, 5MM, 65° | Style #10 fixed tip, 65° bend. |
| 1580-P-10-1MM-145 | P Small Handle, #10 Fixed Tip, 1MM, 145° | Style #10 fixed tip, 145° bend. |
Need help identifying a cannula configuration?
Contact Pemco Medical with the tip style, handle type, diameter, bend angle, or existing part number.
Request Cannula Information
